MAXY-LED is a Professional Quality Addressable LED Lighting Supplier in China, Founded in 2018.

MAXY-LED 12V Led Pixel Module Light Amusement Park Large Puck Xconnect LED Light 1

MAXY-LED 12V Led Pixel Module Light Amusement Park Large Puck Xconnect LED Light 2

MAXY-LED 12V Led Pixel Module Light Amusement Park Large Puck Xconnect LED Light 3

MAXY-LED 12V Led Pixel Module Light Amusement Park Large Puck Xconnect LED Light 4

MAXY-LED 12V Led Pixel Module Light Amusement Park Large Puck Xconnect LED Light 5

MAXY-LED 12V Led Pixel Module Light Amusement Park Large Puck Xconnect LED Light 6

MAXY-LED 12V Led Pixel Module Light Amusement Park Large Puck Xconnect LED Light 7

MAXY-LED 12V Led Pixel Module Light Amusement Park Large Puck Xconnect LED Light

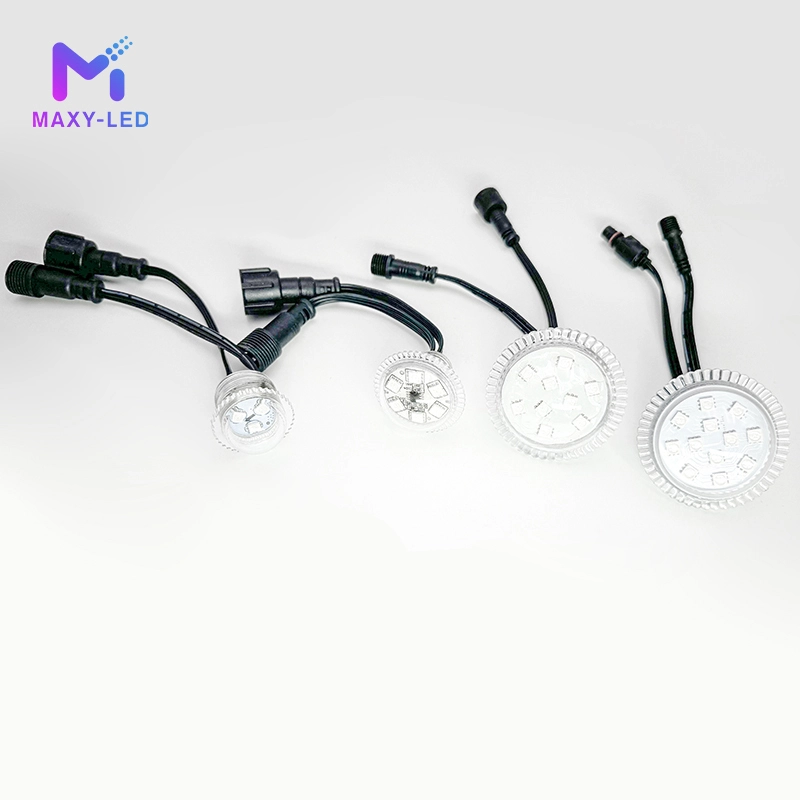

MAXY-LED 12V Led Pixel Module Light – Amusement Park Large Puck Xconnect. Large Puck functions as a single pixel. Threaded for easy mounting. Pigtails are 2ft long allowing for easy daisy chaining to other pucks. These are Xconnext 12v.

The Puck features a sleek and modern design that seamlessly blends into any environment. Its compact size makes it perfect for both residential and commercial settings, providing ample light without taking up valuable space.

ODM & OEM:

Support

Place of Origin:

China

Delivery Time::

5-7 days

MOQ:

50 Piece

Logistics:

Fedex, DHL, etc.

Certification:

CE, ROHS

Inquiry

Write a Review

Specification

Electrical parameters		Light source parameters
Rated working voltage	DC12V	LED type	SMD5050
Wire specification	18awg	LED qty	3/6/9/12 leds
PCS/ Strand	1pcs	Color	RGB
Control mode	TTLRGB	LED brand	Epistar
Control chip	UCS2903	Light source life	≥30000H
Mechanical parameters		Optical parameters
Shell size	58mm	Gray scale	24Bit 256Gray scale
Thread	M18*1.5	Wavelength	RGB(R:615-630nm G:525-545nm B:460-480nm)
Material	PC/COPPER	LED beam	120°±10%
Wire color	Black	Others
Net weight	0.88kg	UV resistance	Yes
Pigtails	Mini waterproof connector	IP rated	IP67
Package	250pcs/box	Individual addressable	Yes
Oper temp	-20℃~+60℃	Max lights before power injection	20pcs
Storage temp	-40℃~+75℃	Customization	Yes

Electrical parameters	• Rated working voltage	DC12V	Light source parameters	• LED type	SMD5050
	• Wire specification	18awg		• LED qty	3/6/9/12 leds
	• PCS/ Strand	1pcs		• Color	RGB
	• Control mode	TTLRGB		• LED Brand	Epistar
	• Control chip	UCS2903		• Light source life	≥30000H
Mechanical parameters	• Shell size	58mm	Optical parameters	• Gray scale	24Bit 256Gray scale
	• Thread	M18*1.5		• Wavelength	RGB(R:615-630nm G:525-545nm B:460-480nm)
	• Material	PC/COPPER		• LED Beam	120°±10%
	• Wire color	black	Others	• UV resistance	Yes
	• Net Weight	0.88kg		• IP rated	IP67
	• Pigtails	mini waterproof connector		• Individual addressable	Yes
	• Package	250pcs/box		• Max lights before power injection	20pcs
	• Oper Temp	-20℃~+60℃		Customization	Yes
	• Storage Temp	-40℃~+75℃

Features

● Meteor shower effect, romantic aesthetic

● The light of every bulb turns on and out one by one in sequence and quickly just like meteor shower or falling snow in the night sky

● Waterproof, dustproof, corrosion resistant

● Low power consumption, energy saving

详情图 1 (3)

Product Details

MAXY-LED light string use waterproof connectors, which are extremely rainproof and splash-proof, making them more suitable for outdoor use. MAXY-LED LED Point Source are made of advanced LEDs, which have high reliability, low power consumption and high brightness.

详情图 1~1 (6)

详情图 2~1 (6)

详情图 3~1 (6)

详情图 4~1 (6)

详情图 5~1 (4)

详情图 9~1 (2)

详情图 10~1

详情图 11~1

Product Installation Methods

Supports multiple installation methods, suitable for different applications.

安装方式

Application

Widely Used for Outdoor Advertising, Christmas Decoration. Lighting Path and Contour Lighting Backlight for Signage/ Letters Architectural Lights for Canopy, Corridor, Window, DIY Lights for Home Use Marine Light, Task Lighting, Replacement of Fluorescent Light Decorative Lights for Holiday, Event, Show, Exhibition.

场景图 1 (3)

场景图 2 (2)

场景图 3

场景图 4

场景图 5

场景图 6

Application

Widely used for Outdoor advertising, Christmas decoration. Lighting Path and contour lighting Backlight for signage/ letters Architectural lights for Canopy, Corridor, Window, DIY Lights for home use Marine light, Task lighting, Replacement of Fluorescent light Decorative lights for holiday, event, show, exhibition.
