MAXY-LED is a Professional Quality Addressable LED Lighting Supplier in China, Founded in 2018.

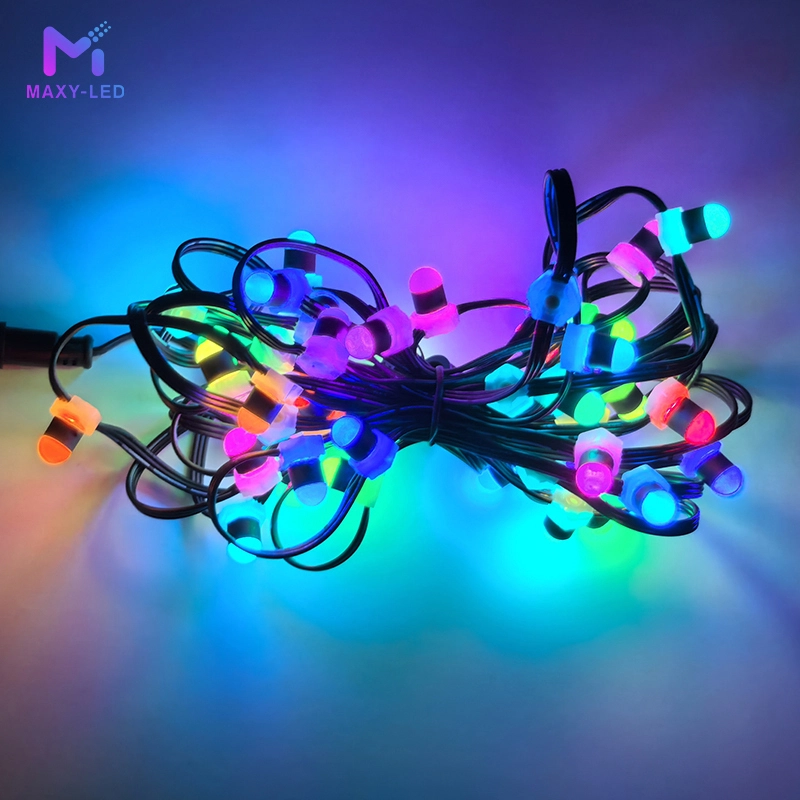

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 1

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 2

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 3

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 4

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 5

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 6

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 7

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 8

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 9

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 10

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 11

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 12

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 13

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel 14

12V WS2811 New Pixel XConnect Pigtails LED Light Source Remote Control Switch IP68 Garden Flat Base Pixel

MAXY-LED Flat Base Pixel use waterproof connectors, which are extremely rainproof and splash-proof, making them more suitable for outdoor use. MAXY-LED Flat Base Pixel are made of advanced LEDs, low power consumption and high brightness.

ODM & OEM:

Support

Place of Origin:

China

Delivery Time::

5-7 days

MOQ:

50 Piece

Logistics:

Fedex, DHL, etc.

Certification:

CE, ROHS

Inquiry

Write a Review

Specification

Electrical parameters		Light source parameters
Rated working voltage	DC12V	LED type	SMD 3528LED
Rated power	0.13W	LED qty	1
Max amp	11.2mA	Color	RGB
Wire specification	18awg	LED brand	Epistar
Line sequence definition	Virtual edge: GND / Print: V + /Near virtual edge: DAT	Light source life	≥30000H
PCS/ Strand	50pcs/strand，100pcs/strand	Optical parameters
Length(M)	Approx.20ft / 40ft	Gray scale	24Bit 256Gray scale
Color order	RGB	Wavelength	RGB(R:615-630nm G:525-545nm B:460-480nm)
Control chip	LB1908(Compatible with WS2811)	LED beam	120°±10%
Pixel spacing	4in	Others
Mechanical parameters		Oper temp	-20℃~+60℃
Material	PC/COPPER	Storage temp	-40℃~+75℃
Wire color	Black	UV resistance	Yes
Net weight	0.008kg	IP rated	IP68
Pigtails	Xconnect/Ray 13.5mm	Individual addressable	Yes
Package	3900pixels/box	Max lights before power injection	Approx. 300lights

Electrical parameters	• Rated working voltage	DC12V	Light source parameters	• LED type	SMD 3528LED
	• Rated power	0.13W		• LED qty	1
	• Max AMP	11.2mA		• Color	RGB
	•Wire specification	18awg		• LED Brand	Epistar
	• Line sequence definition	Virtual edge: GND / Print: V + /Near virtual edge: DAT		• Light source life	≥30000H
	• PCS/ Strand	50pcs/strand，100pcs/strand	Optical parameters	• Gray scale	24Bit 256Gray scale
	• Length(M)	approx.20ft / 40ft		•Wavelength	RGB(R:615-630nm G:525-545nm B:460-480nm)
	• Color order	RGB		• LED Beam	120°±10%
	• Control chip	LB1908(Compatible with WS2811)	Others	• Oper Temp	-20℃~+60℃
	• Pixel spacing	4in		• Storage Temp	-40℃~+75℃
Mechanical parameters	• Material	PC/COPPER		• UV resistance	Yes
	• Wire color	Black		• IP rated	IP68
	• Net Weight	0.008kg		• Individual addressable	Yes
	• Pigtails	Xconnect/Ray 13.5mm		• Max lights before power injection	approx. 300lights
	• Package	3900pixels/box

Why choose MAXY-LED Flat Base Pixel?

Our product stands out in the market due to its combination of high-quality materials, reliability, and ease of installation. With a 2-year warranty included, you can trust that your investment is protected. Upgrade your lighting projects with our 12v WS2811 Resistor Pixel String and experience the difference quality makes.

详情图 1~1 (3)

详情图 2~1 (3)

详情图 3~1 (3)

详情图 4~1 (3)

详情图 5~1 (2)

详情图 6~1 (2)

详情图 7

详情图 8~1 (2)

Application

Widely used for Outdoor advertising, Christmas decoration. Lighting Path and contour lighting Backlight for signage/ letters Architectural lights for Canopy, Corridor, Window, DIY Lights for home use Marine light, Task lighting, Replacement of Fluorescent light Decorative lights for holiday, event, show, exhibition

场景图 1~1 (2)

场景图 2~1 (2)

场景图 3~1 (2)

场景图 4~1 (2)

场景图 5~1 (2)

场景图 6~1 (2)

fAQs

What's the MOQ?

It depends on the exact items, but generally no less than 50 pcs per spec.

Can you accept customization?

Yes, custom length or custom branded packing available.

Would you provide samples?

Yes, and the sample cost would be returned in your bulk order.

How about your lead time?

Generally about 3 -10days, but please contact our sales team to confirm.

How long time for shipping ?

We have different options for shipping.
Air express shipping time about 5-10days.
Air shipping about 12-20days.
Sea shipping about 45-60days.

What's warranty ?

We provided 2 years warranty for pixels, if any issues of our products, we will do after-sales service.
